Avid DB-25 Connections:
Avid (Digidesign) uses the Tascam Db-25 connections.
The analog-in, -out, both +4 and -10, all use the same pin-outs.
CH1_HOT- 24
CH1_COLD - 12
CH1_GND - 25
CH2_HOT - 10
CH2_COLD - 23
CH2_GND - 11
CH3_HOT - 21
CH3_COLD - 9
CH3_GND - 22
CH4_HOT - 7
CH4_COLD - 20
CH4_GND - 8
CH5_HOT - 18
CH5_COLD - 6
CH5_GND - 19
CH6_HOT - 4
CH6_COLD - 17
CH6_GND - 5
CH7_HOT - 15
CH7_COLD - 3
CH7_GND - 16
CH8_HOT - 1
CH8_COLD - 14
CH8_GND - 2
NC_1 - 13
MH1 - 16
MH2 - 27
(These pin-outs are from the HD-IO guide in Appendix B.)

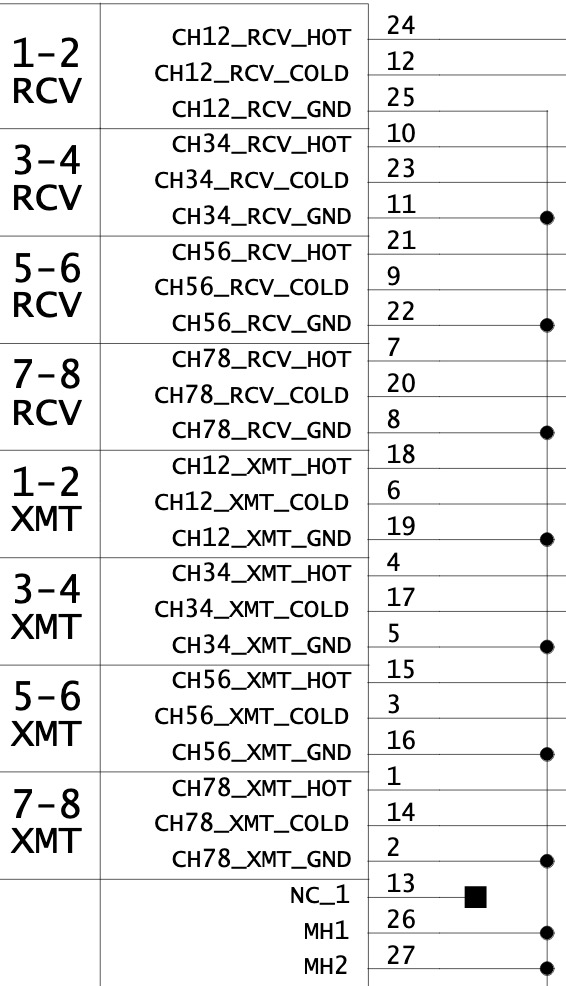

AES/EBU Pin-outs:
AES/EBU
Also on the Tascam pin-out:
Universal Audio (U)
RME
PreSonus
Focusrite
Audient
NOT-COMPATIBLE - Products that use the Yamaha DB-25 connections:
Apogee
Mackie
Lynx
SSL
